The proper way to get dimensions

Measuring instructions Roller blind MINI

Long and trouble-free blind operation depends not only on the high quality of its workmanship, but also on its correct fitting and assembly. For the blind to fit perfectly, the chosen location must be correctly and carefully dimensioned.
The following auxilary drawings must be strictly adhered to.

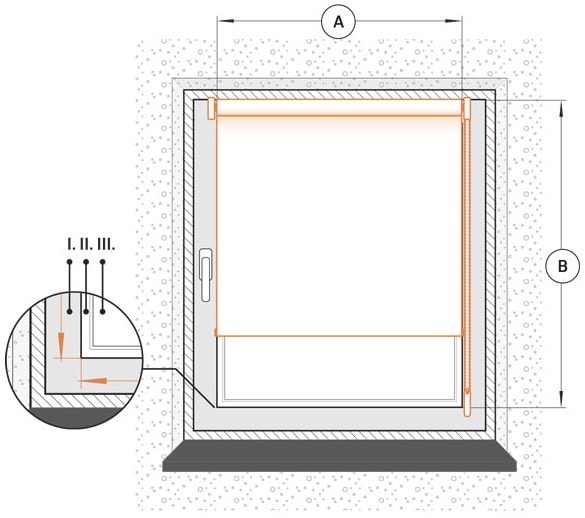

Free-hanging MINI
  • A - WIDTH This is the width of the glass together with glazing beads. We take the measurement in the places where the glazing bead connects to the window frame. Width A is the width of the fabric.
  • B - HEIGHT It is the height from the upper edge of the window frame to the place where the glazing bead is connected to the window frame.
  • I - Window frame
  • II - Glazing bead
  • III - Glass

*All dimensions are given in millimeters

• Pipe – dimension A +4 mm
• Fabric – dimension A
• Weight beam – dimension A
• Connecting profile ZS
– dimension A +27 mm
• Connecting profile ZA
– dimension A +22 mm
• Support profile MINI ZS
– dimension A +29 mm
• Support profile MINI ZA
– dimension A +24 mm
