The proper way to get dimensions

Measuring instructions Roller blind MICRO S

Long and trouble-free operation of the window shutter depends not only on the high quality of its workmanship, but also on its correct fitting and assembly. For the diaphragm to fit perfectly, the chosen location must be correctly and carefully dimensioned.
The following auxilary drawings must be strictly adhered to.

Screwed - window recess

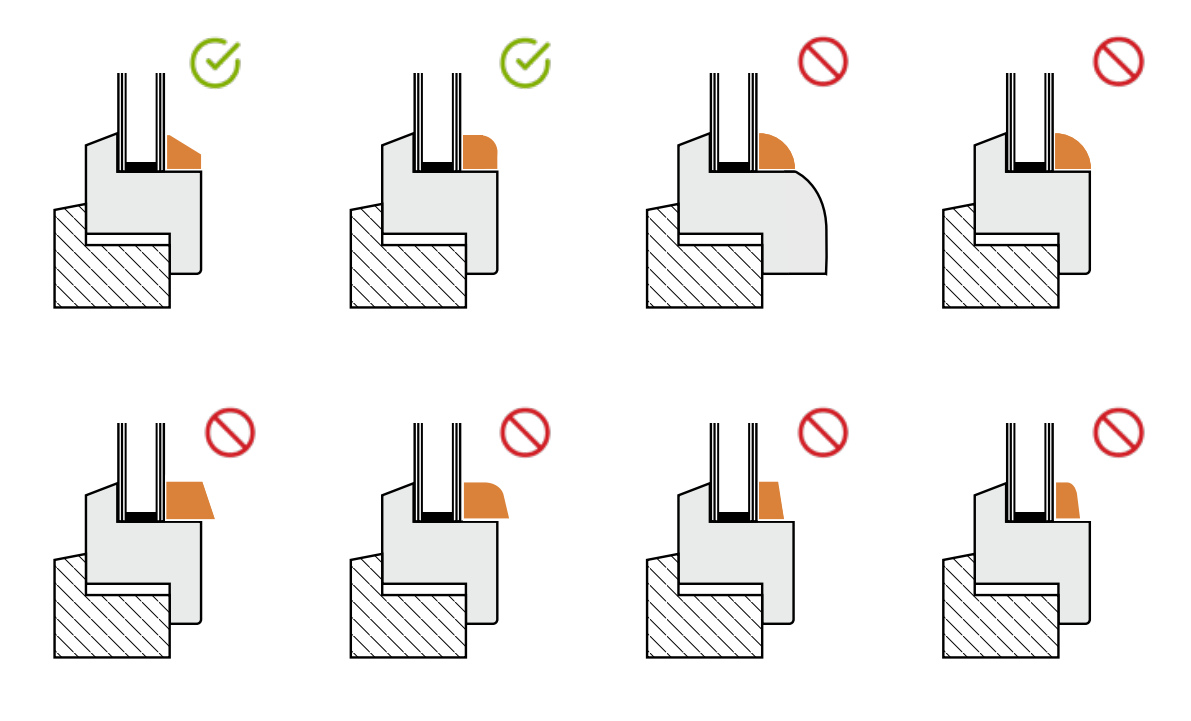

MICRO S roller shutters are suitable for windows with classic and half-round glazing beads. They can be installed in windows with a flat transition between the glazing beads and the window frame (See the drawing below).

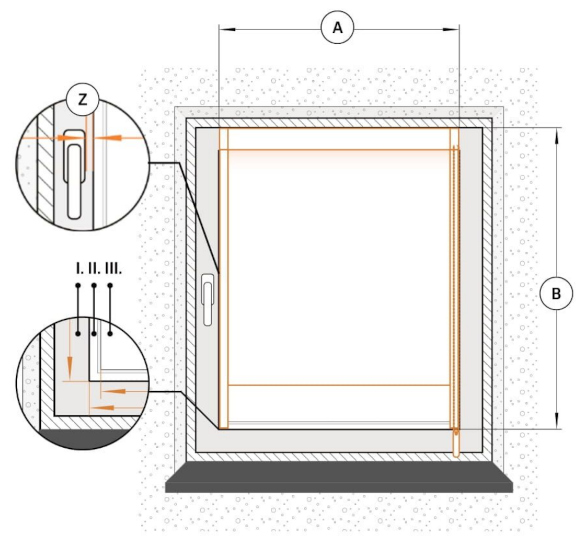

• A - WIDTH This is the width of the glass together with glazing beads. (We take the measurement in the places where the glazing bead joins the window frame).
• B - HEIGHT This is the height of the glass pane and the upper sash of the window, together with the glazing beads. (We take the measurement in the places where the glazing bead joins the window frame). *in the 100% blackout version, the cassette holds up to 180cm of fabric.
• Z - DISTANCE OF THE WINDOW HANDLE TO THE GLAZING BEAD (minimum 1cm) This is the distance between the window handle and the end of the glazing bead needed to make the guides. (The measurement is taken from the end of the handle towards the glass to the end of the glazing bead).
• I - Window frame
• II - Glazing bead
• III - Glass

*All dimensions are given in millimeters
